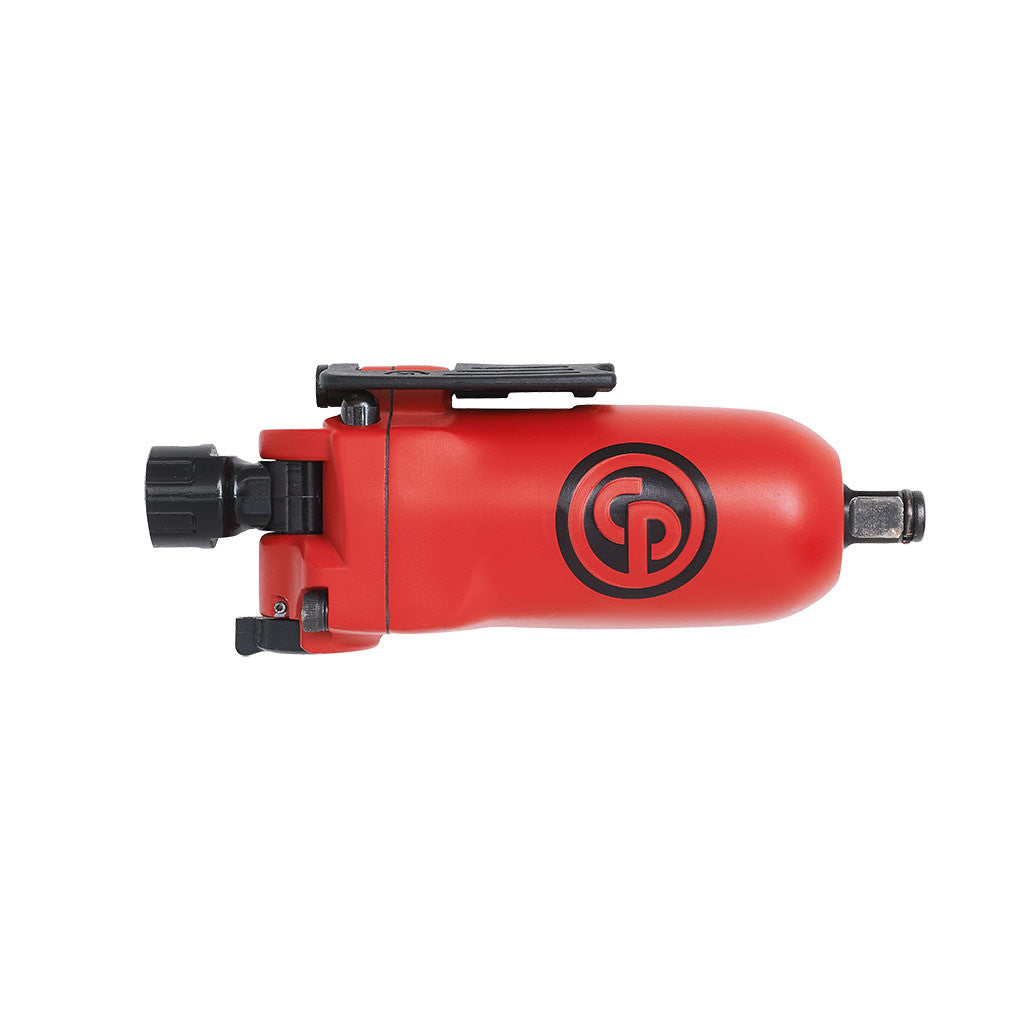

3/8" Drive Mini Butterfly Impact Wrench CP7721

Chicago Pneumatic

3/8" Drive Mini Butterfly Impact Wrench CP7721

$303.00

Benefits

  • 15% SMALLER than any other butterfly impacts
  • Compact
  • Lightweight
  • Powerful
  • Easy operation
  • Durable

Features

  • 5.5 in. / 140 mm length, provides easier access to hard to reach places
  • 1.16 lbs. / 0.53 Kg
  • 80 ft.lbs. / 110 Nm in reverse
  • Single hammer mechanism & Aluminum housing
  • Power regulator in the back: 3 positions on both sides
  • Butterfly shift for forward / reverse
  • Built-in 180° air inlet swivel
  • Ideal tool for transmission and engine repair works, body panels, oil pans, ignitions, motor cycle repair and vehicle seats
Part number 8941077210
Model CP7721
Handle type Butterfly
Square drive 3/8"
Working Torque Range (fwd) 6.6-59 ft.lbs 9-80
Maximum Torque (reverse) 81 ft.lbs 110 Nm
Free speed 15000 rpm
Blows per minute 10500
Net weight 1.1 lb 0.53 kg
Power/weight ratio 73.6 ft.lb/lb 220 Nm/kg
Length 5 1/2" 140 mm
Side to center 1.6" 40 mm
Average air consumption 1 1/2 cfm
Actual air consumption 6 cfm
Air inlet thread size 0.25 "
Min. hose size 3/8" 10 mm
Noise level 92 db(A)
Sound Power 103 db(A)
Vibration α (ISO-28927-2) 4 m/s²
Vibration K (ISO-28927-2) 1 m/s²
Socket retainer Friction ring
Clutch type Rocking dog clutch
