Chicago Pneumatic

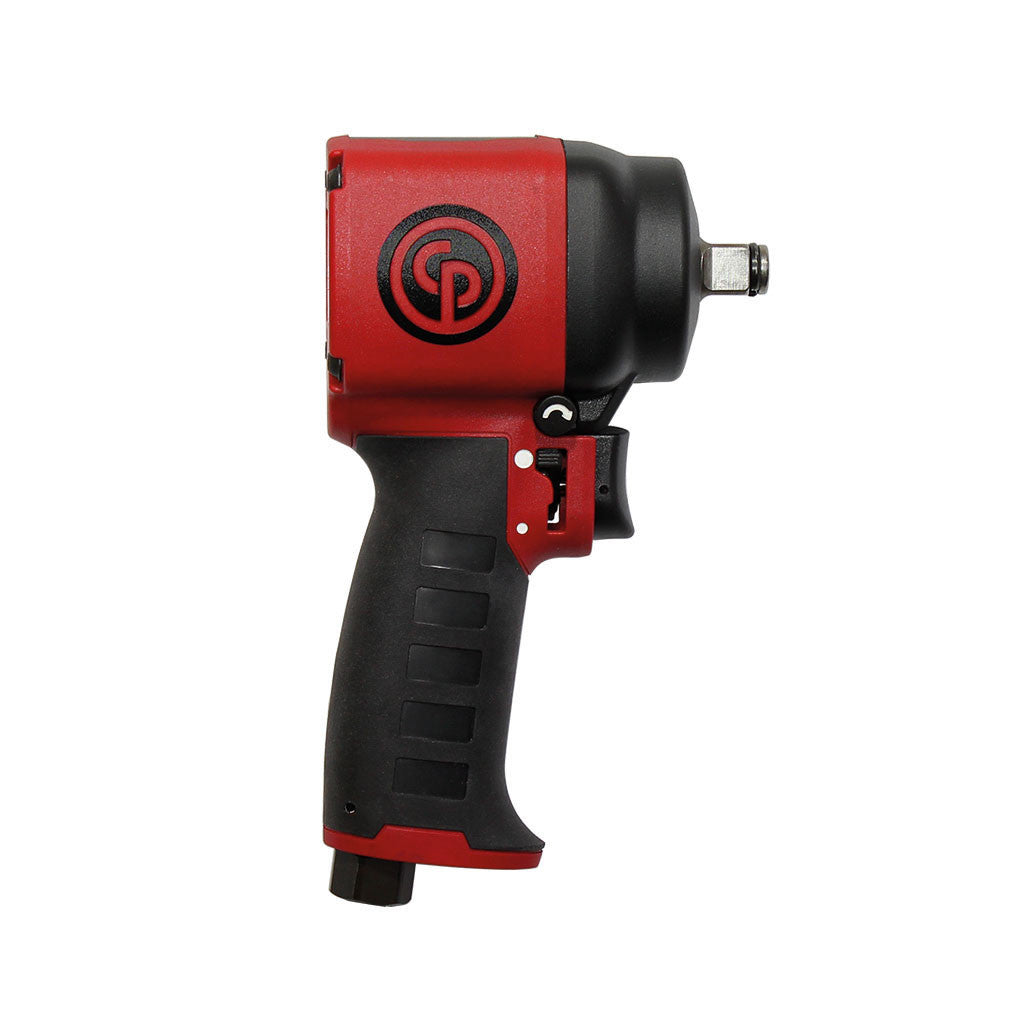

1/2" Ultra Compact Impact Wrench CP7732C
$295.00
Benefits
- Ultra Lightweight
- Easy operation
- Compact
- Powerful
- Durable
Features
- 2.1 lbs. – 1.0 Kg
- 460 ft.lbs - 625 Nm of maximum torque in reverse
- 4 1/4 in – 108 mm length
- Jumbo hammer mechanism
- Steel motor
- Aluminum clutch housing
- Composite housing with curved handle with Thermo-Plastic Rubber injected
- S2S: 1 hand Forward – Reverse operation
- New power setting system: 1 hand-operation behind the trigger
- 2 positions in reverse: max and lower torque
- 2 positions in forward: max and low torque
- Socket retainer ring
- Full teasing trigger
| Part number | 8941077321 | |
| Model | CP7732C | |
| Handle type | Pistol | |
| Square drive | 1/2" | |
| Working Torque Range (fwd) | 70-387 Nm | 52-285 |
| Maximum Torque (reverse) | 625 Nm | 460 ft.lbs |
| Free speed | 9410 rpm | |
| Blows per minute | 1400 | |
| Net weight | 1 kg | 2.2 lb |
| Length | 108 mm | 4.3" |
| Side to center | 32 mm | 1.26" |
| Average air consumption | 2.6 l/s | 5 1/2 cfm |
| Actual air consumption | 10.2 l/s | 22 cfm |
| Free speed air consumption | 14.6 l/s | |
| Air inlet thread size | 0.25 " | |
| Min. hose size | 10 mm | 3/8" |
| Noise level | 95.5 db(A) | |
| Sound Power | 106.5 db(A) | |
| Vibration α (ISO-28927-2) | 10.8 m/s² | |
| Vibration K (ISO-28927-2) | 1.42 m/s² | |
| Socket retainer | Friction ring | |
| Clutch type | Jumbo | |
| Box dimensions | 175*202*75 | |
